Human interactive Robotics

Using natural language to correct robot paths

Robotic systems are increasingly used across industrial automation, service robotics, and autonomous systems, requiring efficient trajectory generation and adaptation. Traditional trajectory planning methods, such as Rapidly-Exploring Random Trees (RRT) and A*, lack adaptability, while Learning from Demonstrations (LfD) enables robots to learn from human demonstrations but struggles with generalization.

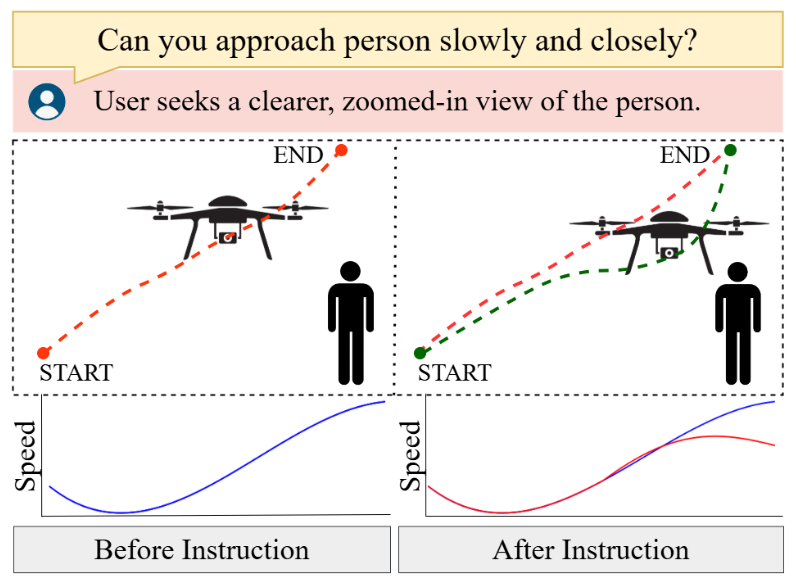

Can you chat with your robot and make it do what you want?

Instruct your robot to incorporate your preferences.

What is OVITA?

OVITA is a novel trajectory adaptation framework that allows users to modify robotic paths dynamically through natural language instructions, eliminating the need for manual reprogramming or additional demonstrations.

Key Features

  • LLM-Powered Adaptation: Uses pre-trained Large Language Models (LLMs) to interpret open-vocabulary user instructions for trajectory refinement.
  • Flexible Command Understanding: Supports
    • Numerical adjustments (e.g., “Move left by 0.2m”)
    • Abstract modifications (e.g., “Move in a spiral”)
    • Multi-step commands in a single instruction (e.g., “Go left for first 10 steps, right for next 10 and so on”)
  • Real-Time Interaction: Enables iterative user feedback for refining robot actions.

Methodology

Our approach enables dynamic trajectory adaptation by leveraging Large Language Models (LLMs) to modify robot paths based on user instructions and environmental context.

1. High-Level Planning & Code Generation

  • The LLM interprets user commands (e.g., “Slow down near the person”) and generates a High-Level Plan (HLP) outlining key trajectory modifications.
  • Python code is automatically generated to adjust the initial trajectory.

2. Code Explanation & User Interaction

  • The LLM explains the generated code in simple terms, allowing users to understand modifications and provide feedback.
  • Users can review key parameters and suggest refinements for improved adaptation.

3. Execution & Constraint Satisfaction

  • The modified trajectory is executed within a Constraint Satisfaction Module (CSM) to ensure collision avoidance, reachability, and other constraints.
  • A visualization module compares the original and modified trajectories, enabling users to assess the changes.

4. Iterative User Feedback

  • Users can review and refine trajectory modifications through an interactive feedback loop.

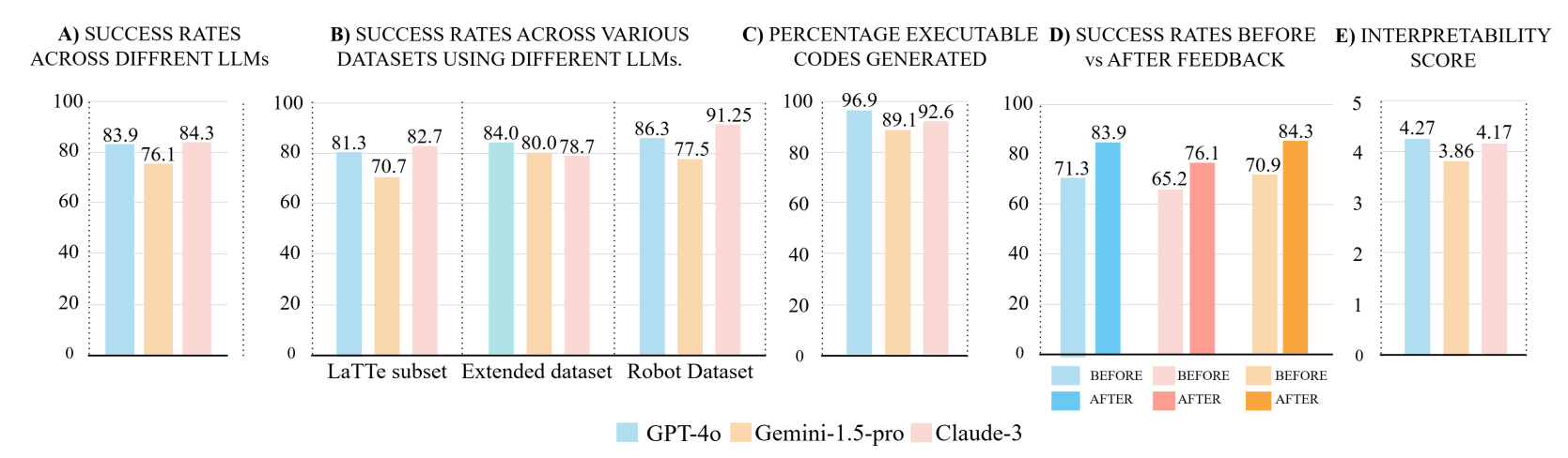

Results

OVITA outperforms existing approaches while provding more diverse control over robot paths.

This method ensures real-time, user-driven trajectory adaptation, making robot path planning intuitive, interpretable, and highly flexible.
